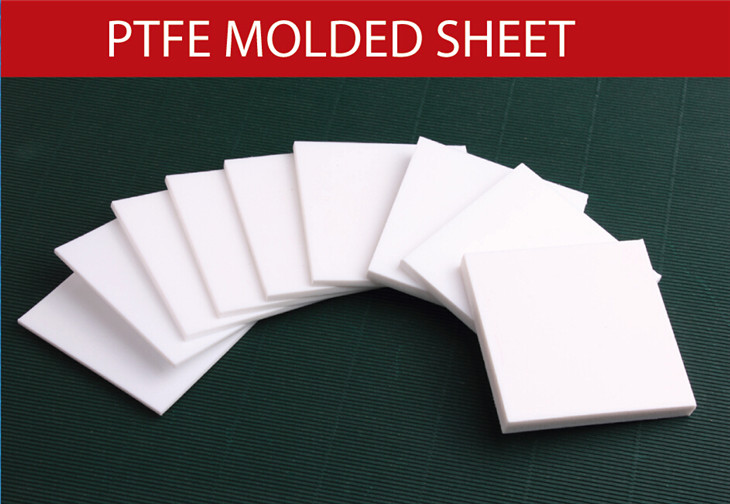

PTFE molded sheet is manufactured by molding process with PTFE granular resin and sintering. It has excellent characteristics, a wide range of practicable temperature from -180℃~+260℃，chemical corrosion resistance, weathering resistance, dielectric superiority, high lubricity, anti-adhesive and innocuity. It is very suitable for seals, linings, diaphragm, scraper guide and bearing pad for bridge.
SPECIFICATION：
|
Area（mm2） |
400/500/600/800/1000/1200/1500/2000 |
|
Width(mm) |
3~120 |
NOTE: Other specifications are available on request.
MAIN PROPERTIES：
|
Item |
Properties |
|
Density（g/cm3） |
2.10-2.30 |
|
Tensile Strength≥（Mpa） |
15 |
|
Elongation at Break≥（%） |
150 |
|
Dielectric Strength≥（Kv/mm） |
10 |
