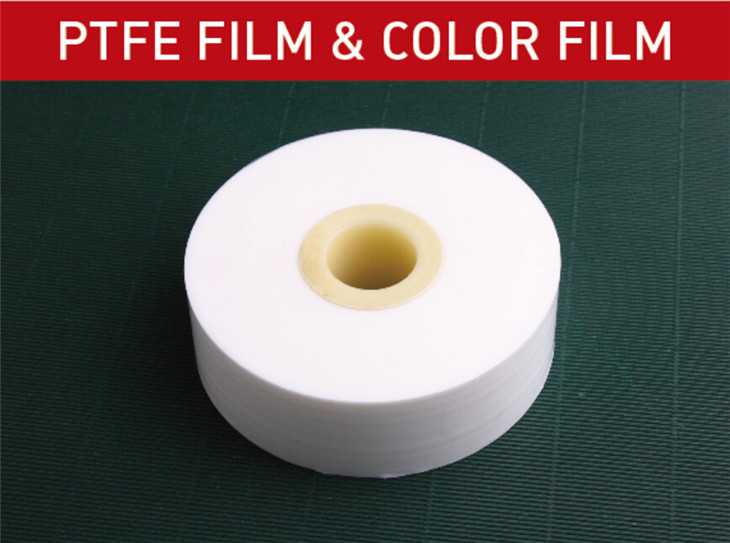

PTFE resin is first molded, sintered and cooled to be working billet, then skived and calendered to PTFE film, PTFE film can be used for insulation liner, sleeve, low frictional materials and chemical corrosion resistant materials. Its properties cannot be attacked by frequency and temperature, it can be used in the temperature range of -180℃~+260℃.
SPECIFICATION：
|
Item |
Thickness(mm) |
Width(mm) |
|
Orientation Film |
0.02-0.1 |
10-120 |
|
Semi- orientation Film |
on request |
10-120 |
|
None- orientation Film |
on request |
10-120 |
NOTE: Other specifications are available on request.
MAIN PROPERTIES：
|
Items |
Unit |
Orientation Film |
Semi- orientation Film |
None- orientation Film |
|
Tensile Strength |
MPa |
≥30 |
≥20 |
≥10 |
|
Elongation at Break |
% |
≥30 |
≥60 |
≥100 |
|
1MHz dielectric loss tangent |
|
2.5×10-4 |
-- |
-- |
|
1MHz dielectric constant |
|
Average 1.8-2.2 |
-- |
-- |
|
Dc breakdown voltage (Normal temperature) |
KV/M |
Average 200 Min 40 |
Average 60 Min 6 |
Average 30 |
